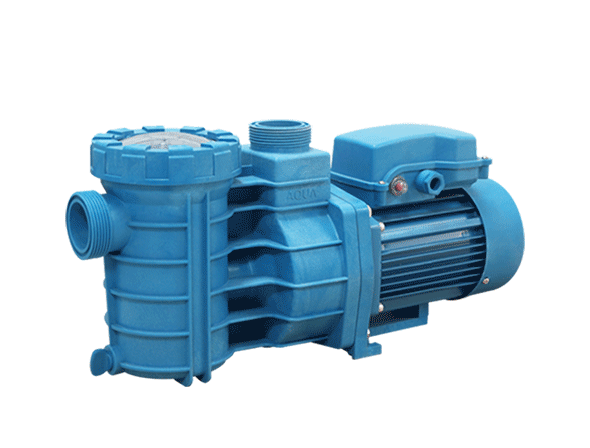

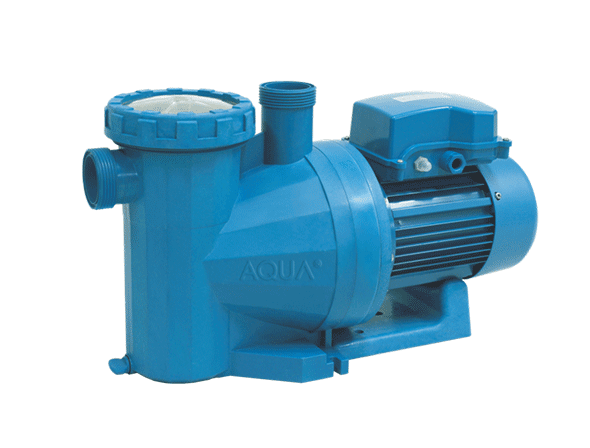

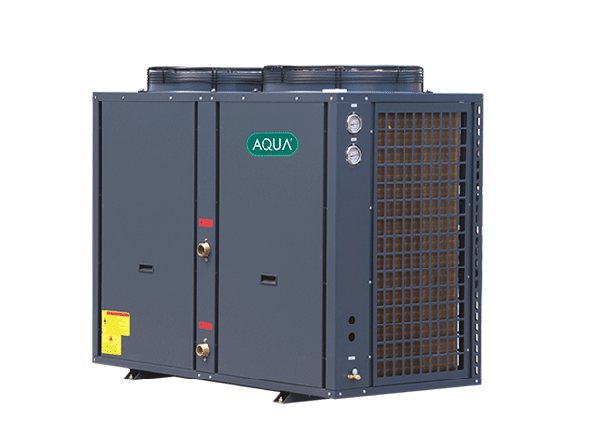

某體育館泳池為1250㎡的是室內標準泳池，設計循環周期為4小時，設計流量為542.5m3/h，故采用6臺11KW（5用1備）愛克循環水泵+5臺Q2350過濾砂缸，使濾后池水潔凈、透明；使用西美克中壓紫外線HWF-420-12-再配合3臺投藥泵對泳池水快速高效殺菌，保持泳池水干凈衛生；到了需要加熱泳池水的季節，泳池采用了5臺愛克B-60系列空氣源熱泵，對游泳池2125㎡的水進行加熱。每臺熱泵的制熱量可達250KW，無論氣溫如何變化，也能保證將穩定的熱量輸送給游泳池。從而實現無論全年全天溫度如何變化，都能保持水溫恒定，同時達到zui大節能效果。
Using a counter-current water circulation system, the pump sends the used pool water into the filter to remove particulate impurities in the pool water, and then returns it to the pool after subsequent disinfection and other processes.
The indoor swimming pool is a high-humidity environment, condensation and other phenomena. Bacteria, molds, and viruses will multiply, which will have a serious impact on the human body and the structure of the house. Special attention will be paid to dehumidification during the design.
In addition to hosting events, the gymnasium is also an external commercial public swimming pool. The hot water demand time is concentrated. During peak use, it must have sufficient hot water and stable water temperature, which will directly affect the image and reputation.
After the swimming pool is used for a long time, when the bottom and wall of the pool will grow algae, and the water circulation filtration system cannot remove the garbage, manual or automatic suction equipment is required to clean it.
